Design No. 316
Sinbad
1928
Original Drawings · 11 sheets

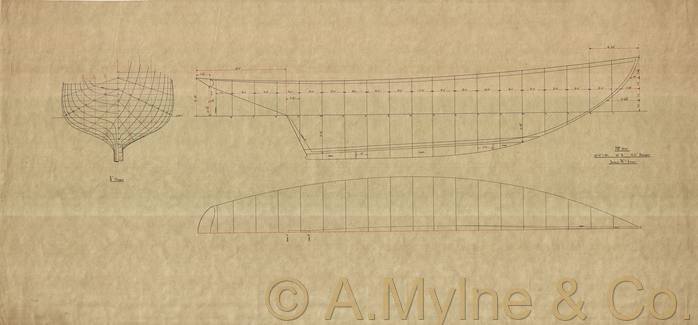

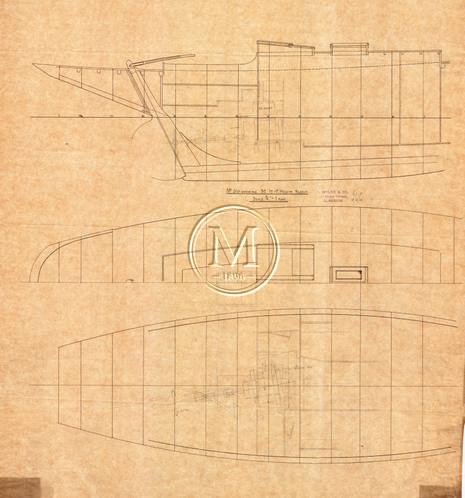

Lines Plan

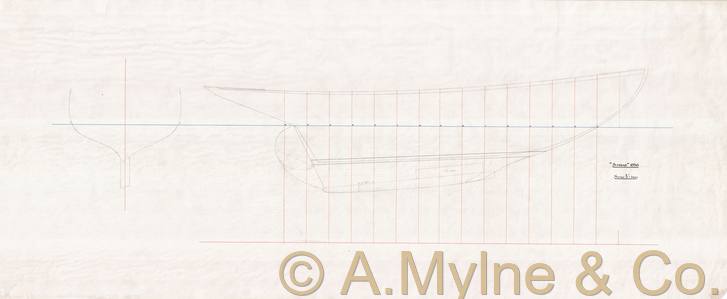

Misc
Misc

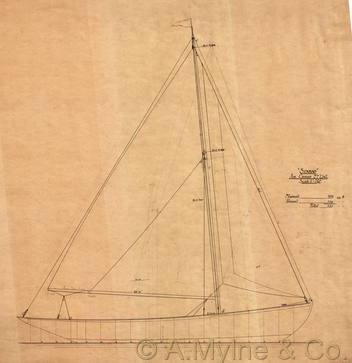

Sail Plan

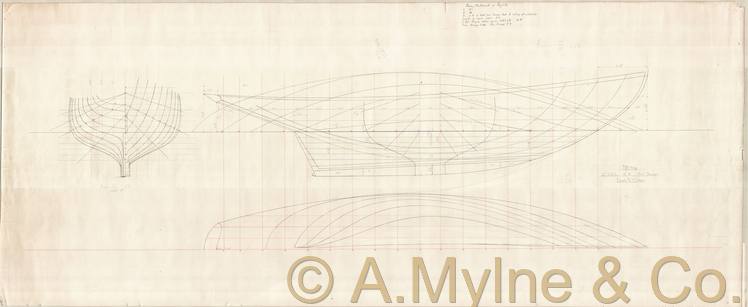

Lines Plan

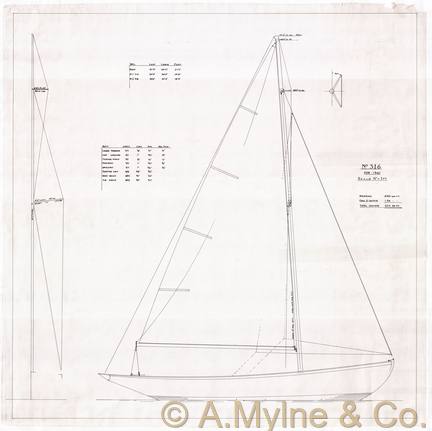

Sail Plan
Sail Plan

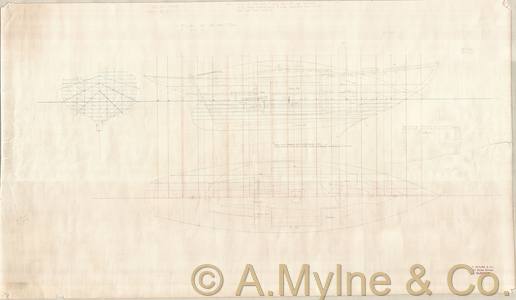

Lines Plan
Dimensions
LOA12.1 m / 40 ft
LOD12.1 m / 40 ft
LWL8.2 m / 27 ft
Beam3.0 m / 10 ft
Draft1.2 m / 4 ft
Displacement7.53 t
Sail Area531 sq ft
Notes
Some drawings for this boat are with job #332 Jobs #316, 332 and 334 appear to be similar boats
