Design No. 103

Lorelei

1904

Original Drawings · 5 sheets

Design 103 — Sail Plan

Sail Plan

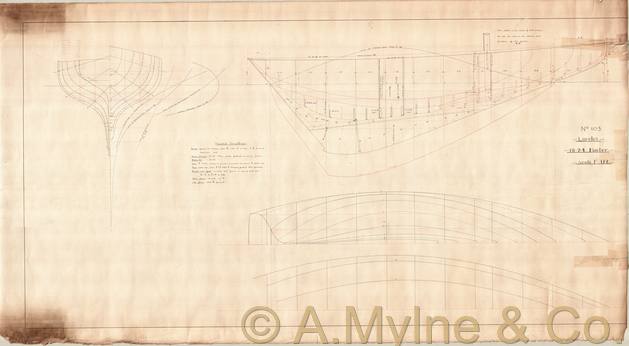

Design 103 — Lines Plan

Lines Plan

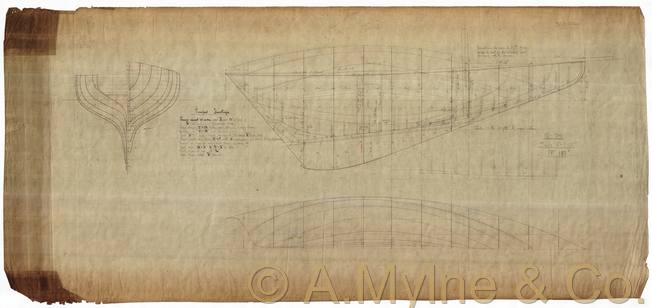

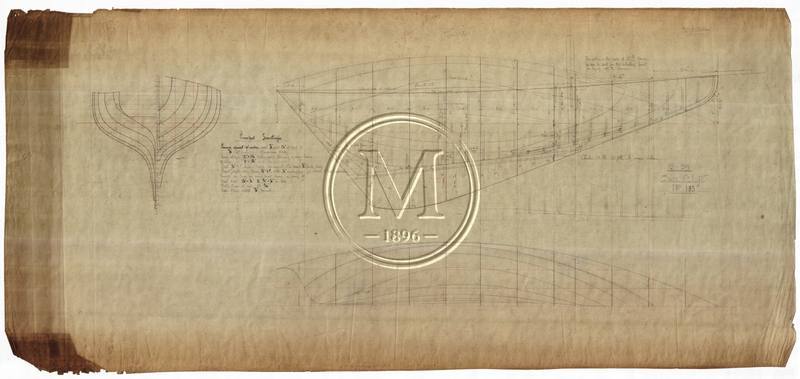

Design 103 — Lines Plan

Lines Plan

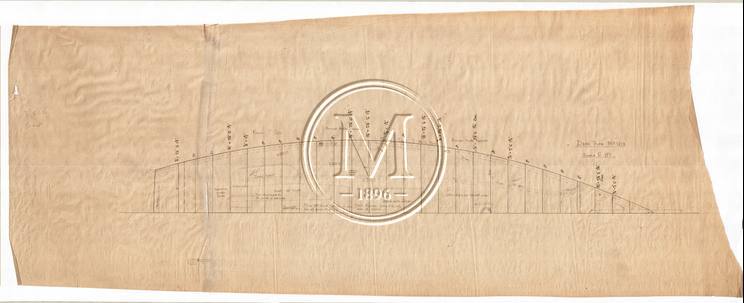

Design 103 — scan 16475

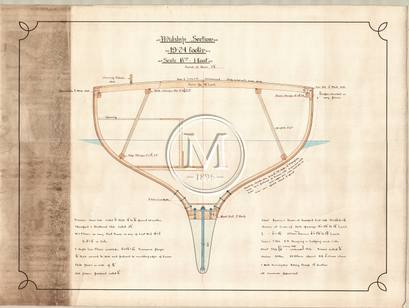

Design 103 — Structure

Structure

Purchase high-res drawings

Dimensions

LOA8.0 m / 26 ft

LOD7.3 m / 24 ft

LWL5.8 m / 19 ft

Beam2.1 m / 7 ft

Draft1.4 m / 5 ft

Sail Area492 sq ft

Yachts in the Register · 1
